2030 L ATC

Key Features of the Micromax 2030 L ATC

• Full sheet bed with approx. 2070mm × 3050mm working area
• Vacuum table built for full sheet handling and secure hold-down
• 20 tool positions complete with 20 tool holders
• 9kW air-cooled spindle for powerful routing and cutting performance
• Automatic lowering positioning stops
• Automatic vacuum pump start
• 3 × 7.5kW blower vacuum pumps to reduce movement on smaller parts
• Side roller for aided loading
• Safety light barriers
• Sweeping / unloading arm as standard
• Dust extractor included
• Delivery, installation and training included

See the Micromax 2030 L ATC in Action

Full Machine Specification

Bed size

2030mm × 3050mm

Working accuracy

±0.05mm

Max positioning speed

70,000 mm/min

Max working speed

25,000 mm/min

Spindle speed

24,000 rpm

Spindle power

9kW, air-cooled

Tool changer

20 × ISO30 ER32 holders

Inverter

11kW Fuling

Drive system

1.5kW Leadshine AC servo

Command code

G code

Lubrication

Automatic

Voltage

AC380V / 3PH / 50Hz

A Strong Fit for Production Environments

• Cabinet makers
• Furniture manufacturers
• Joinery workshops
• Sheet material processing
• Nested-based manufacturing
• Wood, MDF, plastics and composite cutting

See It Installed in Real UK Workshops

Genuine photos from a Micromax 2030 L ATC delivery and installation - no stock renders, just the machine on the floor, wired in and cutting production parts.

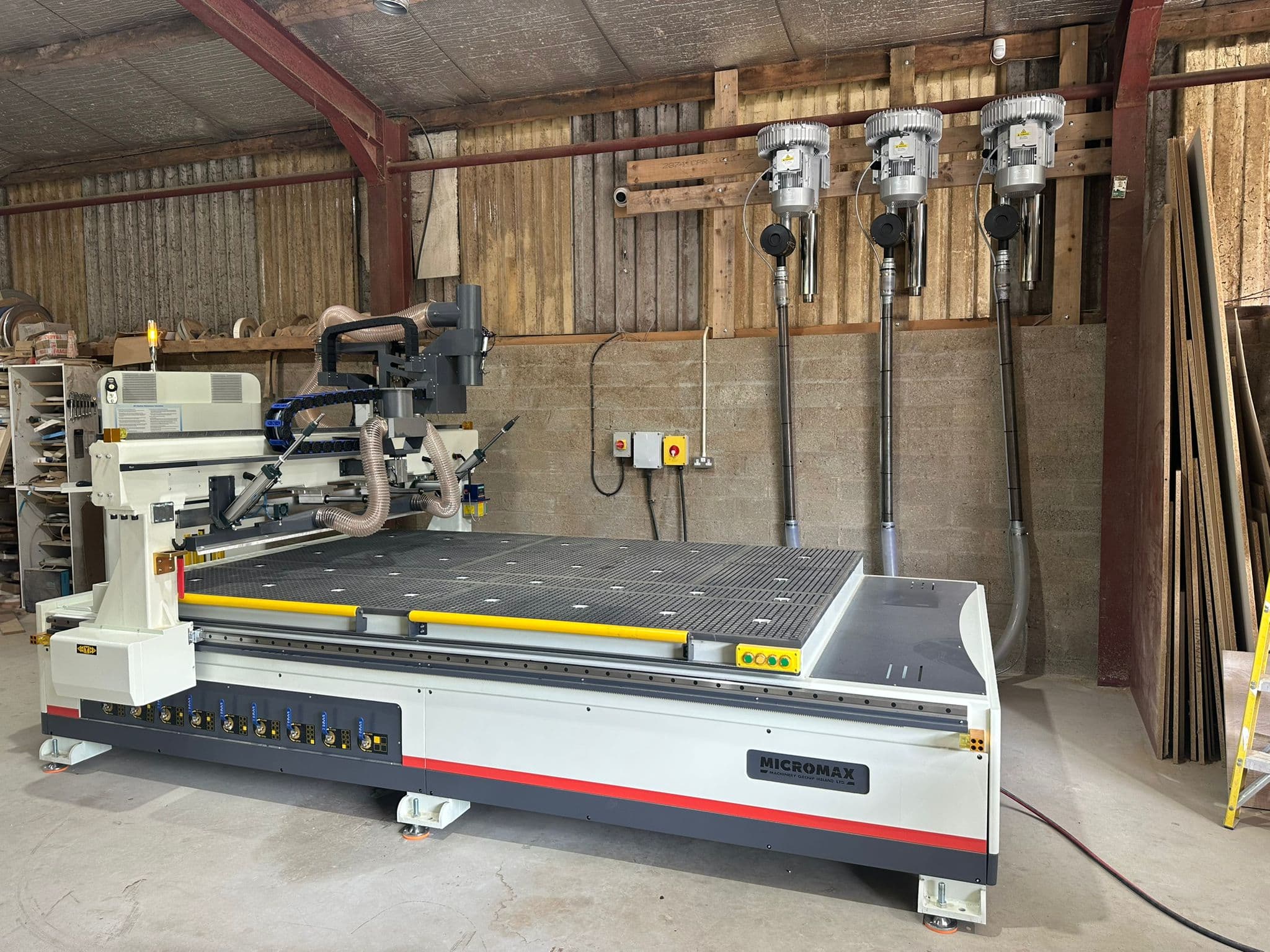

Three-quarter view of a Micromax 2030 L ATC full-sheet CNC router freshly installed in a UK workshop, with the triple 7.5kW vacuum blower pumps mounted on the wall, a ladder and sheet material storage racking in the background.

Front-on photo of a Micromax 2030 L ATC CNC router in a timber-framed workshop, showing the vacuum table, gantry, dust extraction pipework and overhead vacuum pump units installed against the wall.

Close-up of the industrial control panel on a Micromax 2030 L ATC CNC router, showing the touchscreen interface with live G-code, absolute axis coordinates, vacuum pump controls and master power, on and emergency stop buttons.

Close-up of the X-axis gantry on a Micromax 2030 L ATC, showing the automatic tool changer holders, cable carrier chain, flexible dust extraction hose and overhead vacuum pump units.

Close-up view down the gantry rail of a Micromax 2030 L ATC CNC router, showing the flexible dust extraction hose, tool changer arm and a row of precision-cut white nested parts held on the vacuum table after a production run.

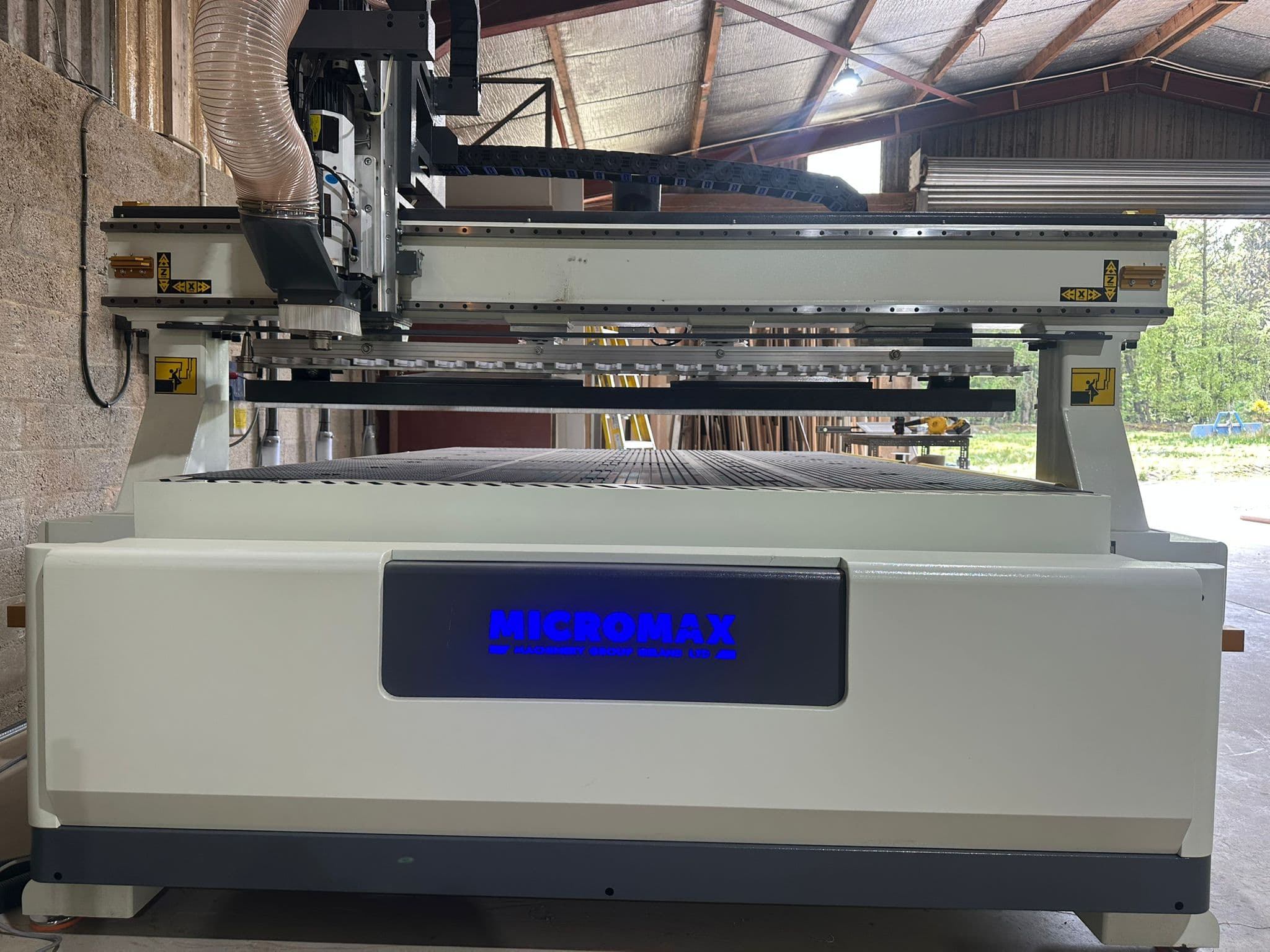

Front view of a Micromax 2030 L ATC CNC router with its illuminated blue MICROMAX badge, photographed in a workshop with the shutter door open to daylight and greenery visible outside.

Wide-angle three-quarter photo of a Micromax 2030 L ATC CNC router installed in a timber-clad workshop, with a step ladder, sheet material racking and boxed accessories visible around the machine.

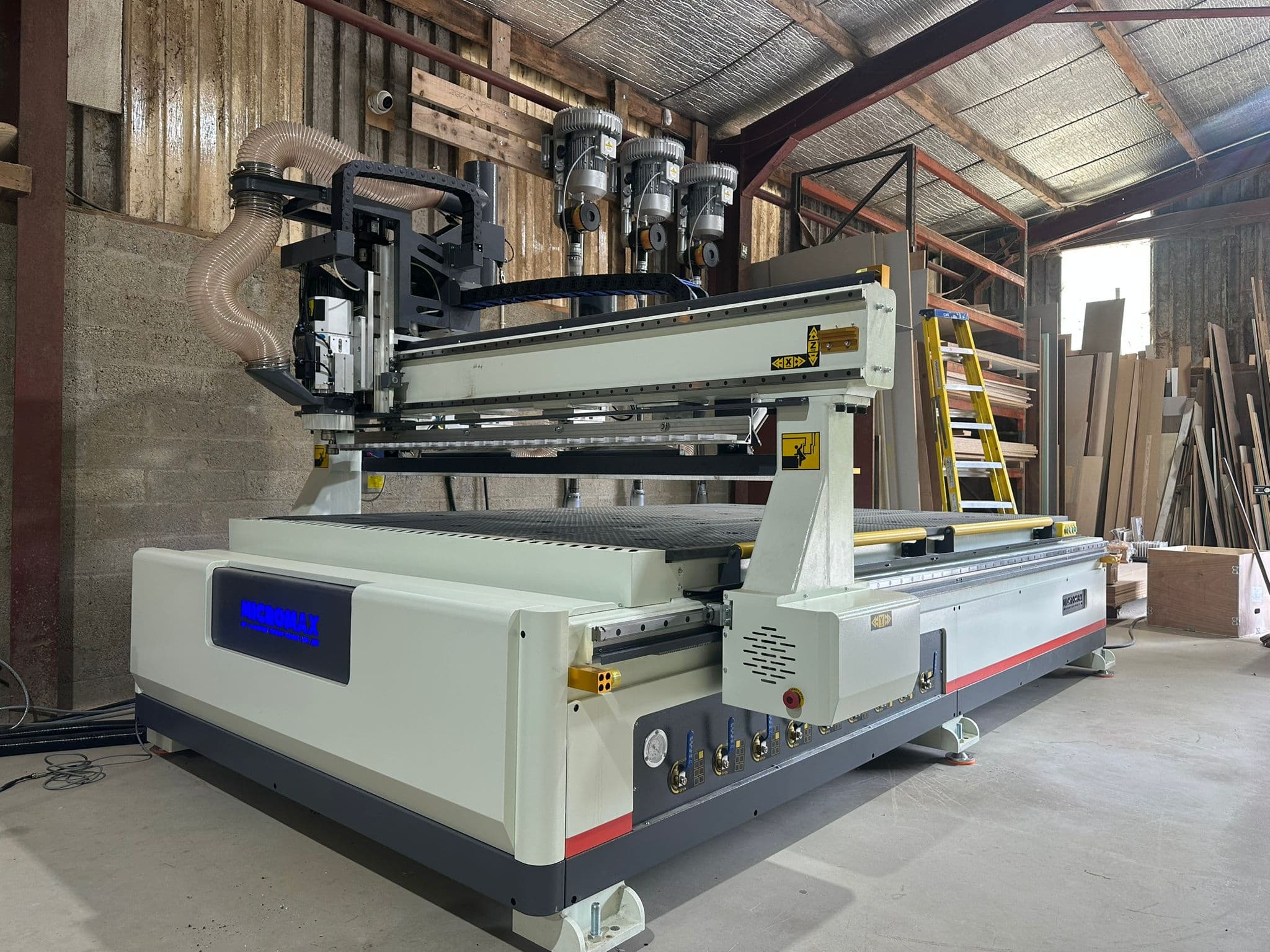

General overview photograph of a Micromax 2030 L ATC CNC router positioned in a workshop, showing the vacuum table, control cabinet and surrounding sheet material storage.

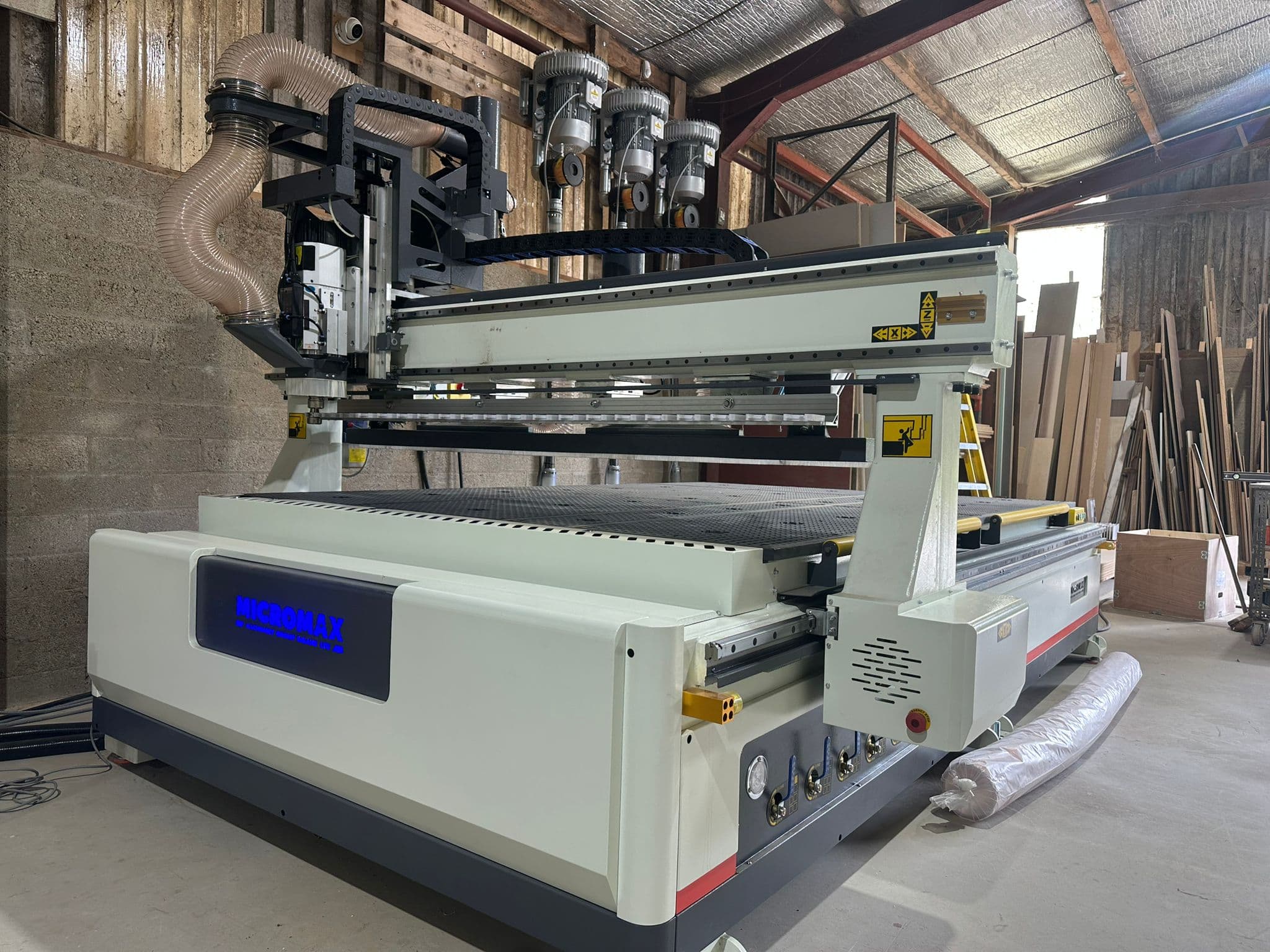

Photo of a brand-new Micromax 2030 L ATC CNC router shortly after delivery, with protective plastic wrapping still visible on nearby components and packaging in the background.

Angled view of the operator control station on a Micromax 2030 L ATC CNC router, showing the illuminated MICROMAX badge on the cabinet with the vacuum table and gantry visible behind.

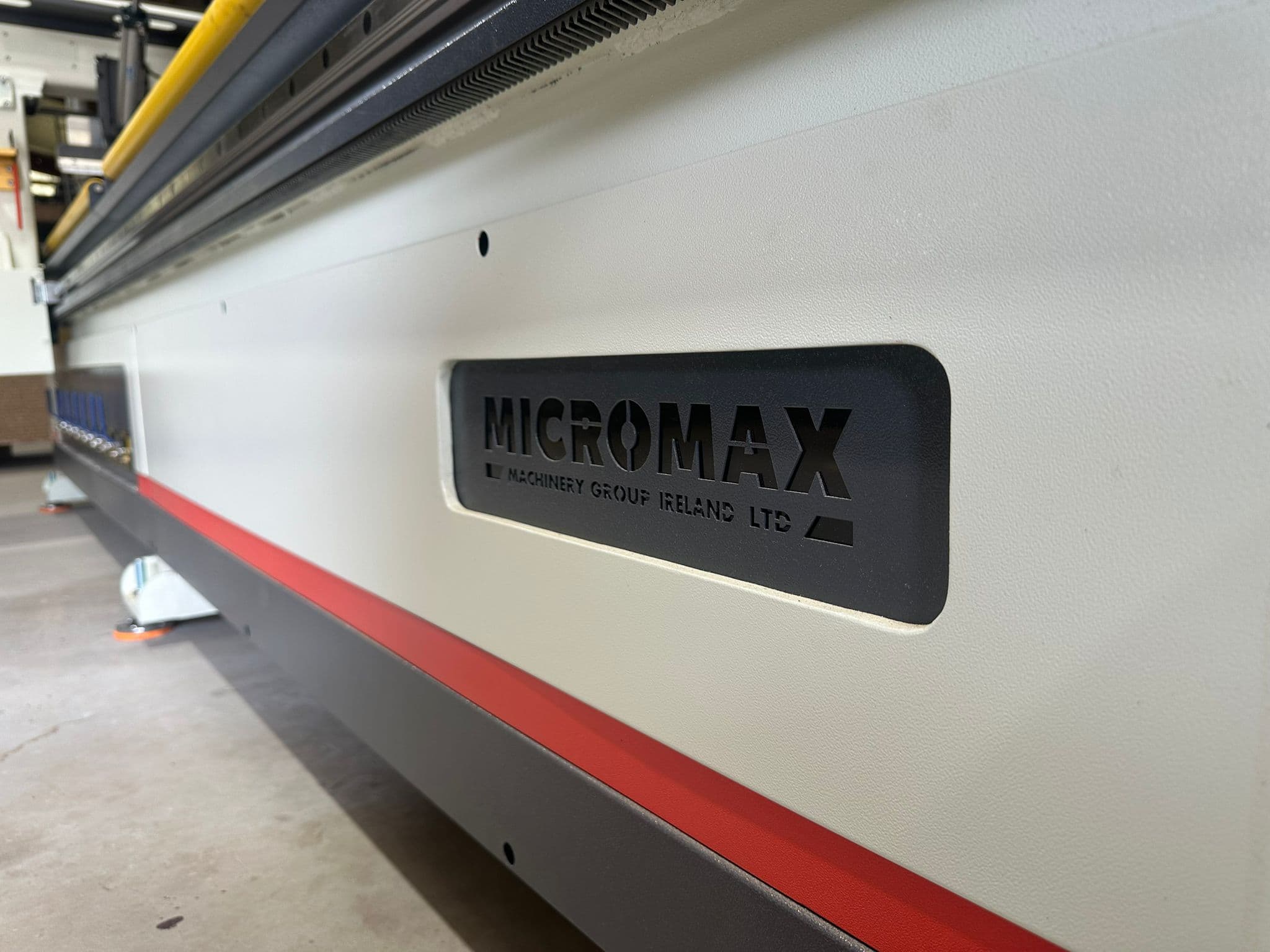

Detailed close-up of the engraved Micromax Machinery Group Ireland Ltd nameplate fitted to the side cabinet of a 2030 L ATC CNC router, highlighting build quality and finish.

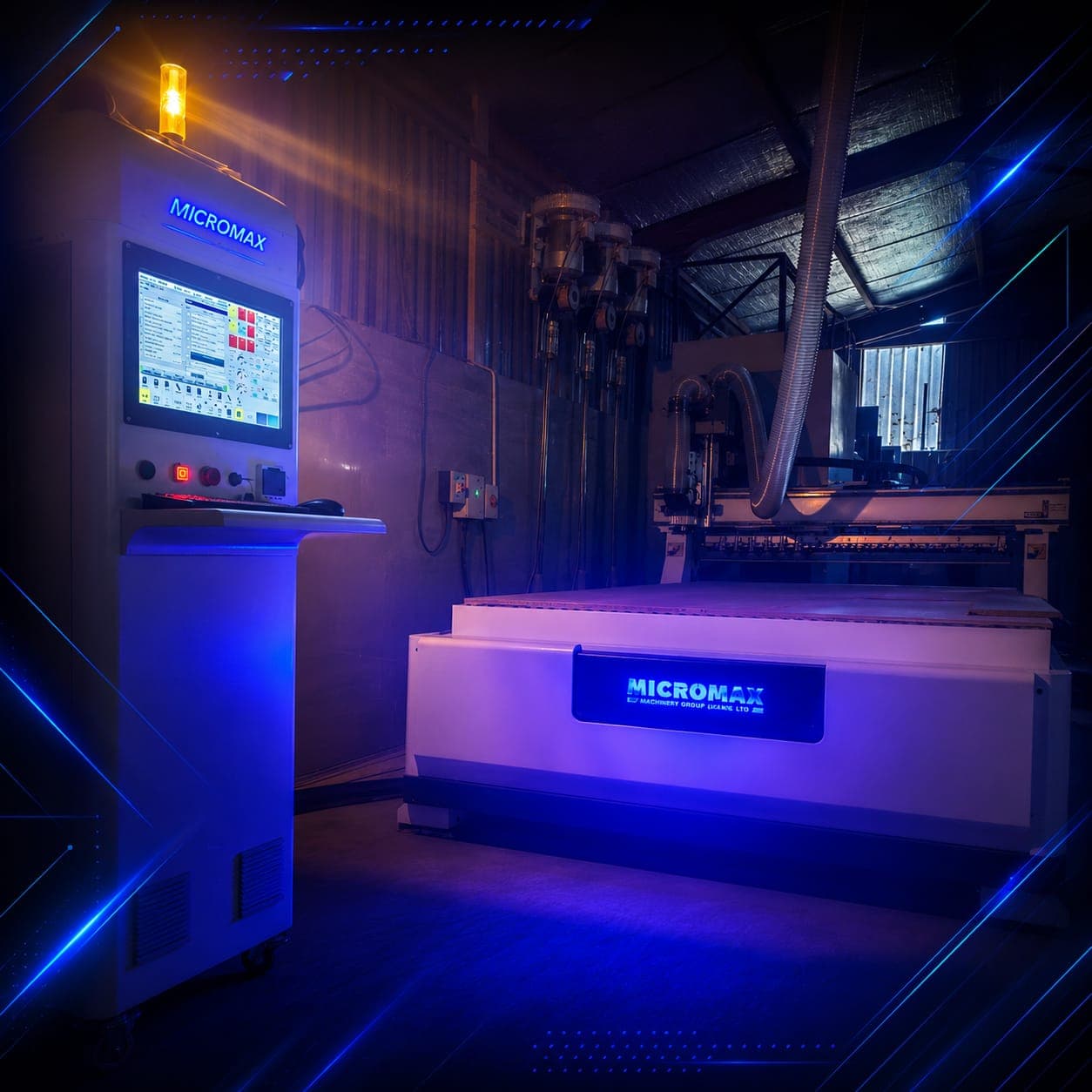

Dramatic stylised promotional photo of a Micromax 2030 L ATC CNC router and its control station, edited with blue lighting accents to highlight the machine's profile in the workshop.

Micromax 2030 L ATC - FAQs

Enquire About the 2030 L ATC

Tell us what materials you cut, your sheet sizes and production targets, and we'll confirm whether this is the right configuration for your workshop - plus current pricing.
